Net-Zero Transport Refrigeration

Transport refrigeration is an overlooked subsector urgently in need of innovation and policy support. Emissions from transport cooling systems can account for around 40 per cent of the vehicle’s total emissions, half of which is due to the direct emissions from the refrigerant. Despite the urgent need for net-zero products, availability is low. CO2 shows a lot of potential for widespread uptake in shipping. Truck and trailer net-zero systems using cryogenics are also showing promise however, the energy intensity of producing the liquid CO2 or nitrogen raises questions about their suitability as net-zero compatible products

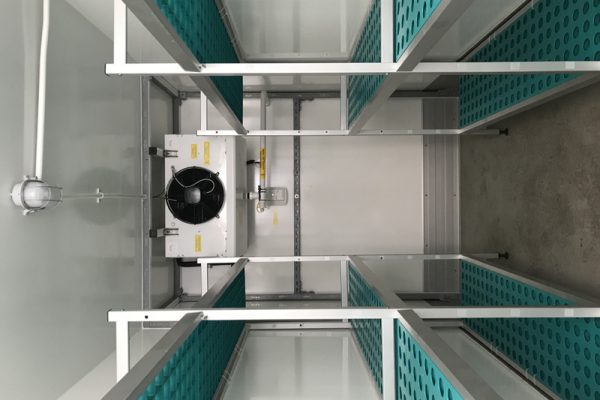

CO2 Cold Chain Condenser Unit (for mobile trailers) - Greencold

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Truck And Trailer
Technology Type
Condensor
Refrigerant
Carbon Dioxide
Manufacturer
Greencold
Availability
Europe
Energy Efficiency
Energy efficiency measures: Based on monitoring data, the units deliver 16% energy savings for refrigeration, and a 25% saving for freezing applications, compared to traditional...

Refrigerant GWP: 1
Refrigerant safety class: A1
Rated cooling capacity range (in kW): 4 kW Cooling Capacity for Chill and 2 kW Cooling capacity for Freeze application
Dimensions: Depth (in mm): 350Height (in mm): 930, Width (in mm): 800, Weight (in kg): 67
Unit cost: Weekend hire from GBP 275, Day hire from GBP 150, Weekly hire from GBP 350
Training: Trailer is for hire, will be delivered to site, positioned and set up by refrigeration engineer
Company Headquarters: UK
Statement by Greencold: “We would be prepared to hire the trailer outside the UK for ‘price on application’ (POA) however it must be stated the trailer does not refrigerate whilst in transit but only when parked in static configuration.”, “From our facility in the UK we would be able to supply CO2 refrigerated trailers for sale built to the customers requirements, size, shelving or dual compartment function for example.”

Website
https://greencold.co.uk/custom-refrigerated-trailers/
Source


CRYOGEN®-Trans - Air Liquide

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Truck And Trailer
Technology Type
Cryogenic
Refrigerant
Cryogenic liquid nitrogen
Manufacturer
Air Liquide
Availability
Worldwide
Energy Efficiency


Refrigerant GWP: 0
Refrigerant safety class: A1
Dimensions:  Height (in mm): 624- 700, Diameter: 600-650 , Depth (in mm): 1580 – 2720, Weight (in kg): 140-380 (empty)
Company Headquarters: Germany

Website
https://www.cryotherminc.com/products/transfer/productinformation/cryogen-trans
Source


HG CO2 T Range - BOCK

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Refrigerated Reefer
Technology Type
Compressor
Refrigerant
Carbon Dioxide
Manufacturer
BOCK
Availability
Worldwide
Energy Efficiency
EER: 1.69 – 1.93 (varies depending on model) The compressors range shows highest efficiency in the market.

Refrigerant GWP: 1
Refrigerant safety class: A1
Rated cooling capacity range (in kW) 12 – 83 kW (varies depending on model)
Dimensions:  Weight (in kg): 145-242kg depending on model
Training: GEA Bock offers special user training for interested experts. Trainings are also offered virtually as webinars now.
Company Headquarters: Germany
Awards: Compressors are admitted to strict requirements of ASERCOM (Association of European Refrigeration Compressors and Controls Manufacturers) performance certification programme.

Website
https://bock.de/en/products/stationary-applications/semi-hermetic-co2-compressors-transcritical-and-subcritical
Source
https://accelerate24.news/regions/gea-to-equip-chinese-cruise-ships-with-transcritical-co2/2019/,

Plate freezer V20 38/75B - DSI

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Refrigerated Reefer
Technology Type
Plate Freezer
Refrigerant
Ammonia
Carbon Dioxide
Manufacturer
DSI
Availability
Worldwide
Energy Efficiency
Coefficient of Performance (COP): 2.18 tested under nominal conditions (Evaporating/Condensing Temperature -40°C/+25°C), 1.78 (Evaporating/Condensing Temperature -50°C/+25°C )

Refrigerant GWP: 0/1
Refrigerant safety class: A1/B2L
Rated cooling capacity range (in kW): 1350 kW (4,606 MBH) at –48°C (-54.4°F)
Company Headquarters: Denmark

Website
https://dsidantech.com/products/vertical-plate-freezers
Source


SAB 110 screw compressors - Johnson Controls

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Refrigerated Reefer
Technology Type
Compressor
Refrigerant
Ammonia
Carbon Dioxide
Manufacturer
Johnson Controls
Availability
Worldwide
Energy Efficiency
Energy efficiency measures: The resulting energy savings ensure the lowest possible operating costs.

Refrigerant GWP: 0/1
Refrigerant safety class: A1/B2L
Rated cooling capacity range (in kW): 79-164 (-10/+35˚C)
Dimensions: Height (in mm): 13000 Width (in mm): 900, Depth (in mm): 1900, Weight (in kg): 600
Company Headquarters: United States
Unit cost: Used in plant for fish processing and cold storage on board vessels: the refrigeration plant equipment costs were €2.8M. The total system cost, including the processing facility and cold store was €7.2M.

Website
Source
Additional information: https://www.ammonia21.com/articles/5471/johnson_controls_shipping_vessel_co_sub_2_sub_nh_sub_3_sub_cascade_installation,

SuperFreeeze Plate Freezer - Everflo

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Fishing Operations
Refrigerated Reefer
Technology Type
Plate Freezer
Refrigerant
Ammonia
Manufacturer
Everflo
Availability
Africa / Asia / Europe / Oceania / South America
Energy Efficiency


Refrigerant GWP: 0
Refrigerant safety class: B2L
Rated cooling capacity range (in kW): 30kW / 75kW
Company Headquarters: South Africa

Website
https://everflo.co.za
Source


Transicold NaturaLINE® container refrigeration unit - Carrier Commercial Refrigeration

Net-Zero Product
More Information
Sector
Refrigeration Transport
Application
Refrigerated Reefer
Technology Type
Reefer Container
Refrigerant
Carbon Dioxide
Manufacturer
Carrier Commercial Refrigeration
Availability
Worldwide
Energy Efficiency
Energy efficiency measures: While the NaturaLINE unit achieves its best efficiencies when ambient conditions are below 27 degrees C (80.6 degrees Fahrenheit), its performance under...

Refrigerant GWP: 1
Refrigerant safety class: A1
Rated cooling capacity range (in kW): Air-to-evaporator at -40°C, Cooling capacity 3.6 kW (12,300 Btu/h), Air-to-evaporator at -29°C, Cooling capacity 5.0 kW (17,050 Btu/h), Air-to-evaporator at -18°C, Cooling capacity 6.0 kW (20,500 Btu/h), Air-to-evaporator at 2°C, Cooling capacity 9.4 kW (32,050 Btu/h)
Training: Carrier Transicold’s TechLINE® Academy offers a live web-based online curriculum provided in English, Spanish and Chinese and covering fundamentals of the operation for the PrimeLINE®, NaturaLINE® and ThinLINE® units as well as safety protocols, specialized service tools, diagnostics and more.
Company Headquarters:, United States
Awards: Recognized as the Innovation Technology of the Year at the prestigious Containerisation International 2012 Awards ceremony. Carrier Transicold’s NaturaLINE system was the only refrigeration technology recognized in the programme. The NaturaLINE unit has been validated by the UL Environment as having a 95 percent recyclability rate, joining Carrier’s PrimeLINE® unit as the only container refrigeration units to achieve recyclability validation.

Website
https://www.carrier.com/container-refrigeration/en/worldwide/products/Container-Units/NaturaLINE/
Source
